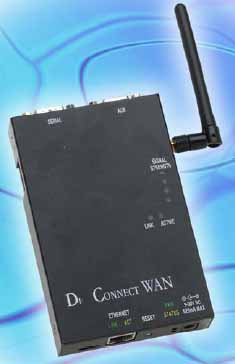

GSM GPRS/EDGE
Cell Cellular Gateway

GSM wireless Wide Area Network (WAN) gateway/router, provides an alternative to traditional wired TCP/IP, utilizing wireless GSM GPRS/EDGE technology to create primary and backup network connectivity.


  • GSM/GPRS with EDGE network for high-speed wireless network connectivity

  • Quadband 1900/850 and 1800/900 MHz GSM GPRS/EDGE interface for use in U.S. and global markets

  • Unique SureLink™ “always on” connection maintains network for rapid airtime on-demand communications

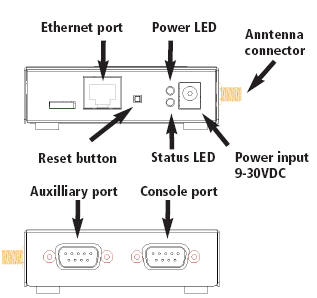

  • 10/100Base-T Ethernet for direct IP connection to Ethernet port on existing router or IP device

  • 9-30VDC for diverse power input

  • Web interface for easy centralized console configuration and statistics

  • Integrates with Connectware Suite for seamless management of
    hundreds or thousands of devices

  • Up to 256-bit AES security provides encryption and authentication for management communications via Connectware Manager

Di Connect WAN GSM, a wireless Wide Area Network (WAN) gateway/router, provides an alternative to traditional wired TCP/IP, utilizing wireless GSM technology to create primary and backup network connectivity. Part of Di’s remote device management focus, Digi Connect WAN GSM offers an easy and cost-effective means of connecting virtually any remote location or device into the corporate IP network. It is ideal for use where wired networks (e.g., lease line/frame relay, CSU/DSU, fractional T1) are not feasible or where alternative network connections are required.

With a General Packet Radio Service (GPRS) class 12 and Enhanced Data Rates for GSM Evolution (EDGE) class 10 wireless interface, Di Connect WAN GSM provides data rates up to 240 Kbps (100-130 Kbps typical). Benefits of wireless communications via Di Connect WAN GSM include instant deployment, elimination of wiring costs, elimination of problems due to wire breaks, the ability to traverse firewalls, and the flexibility to move the connection virtually anywhere. Plus, by using the unique Di  SureLink “always on” functionality, users can keep a connection alive via device or server initiated settings which enable quick communications when you need it.

For backup network and device applications, Di Connect WAN GSM integrates with remote locations via a secondary Ethernet WAN port on an existing router. This provides a truly diverse network connection for remote locations requiring  maximum uptime, such as retail/POS and financial applications.

Di Connect WAN GSM can also provide the primary network connection  for remote sites with individual devices or small networks of IP devices. New construction locations, power utility substations, small retail sites or temporary facilities without primary wired connections are examples of applications for this wireless connectivity  solution.

Di Connect WAN GSM seamlessly integrates with the Di Connectware™ Suite, which provides easy setup, configuration and maintenance of large installations. Users can upgrade firmware or change settings on thousands of devices with only a few clicks. It also makes troubleshooting simple by reporting problems like identifying rogue devices or network issues.
