Flash Poll TM Telenetics DSP9612FP Modem

Dual Mode: 9600/4800 bps Fast Poll and FSK, Bell 202T 0-1800 bps
DSP9612FP Modem
DSP9612LV Modem
DSP9612RM Modem

Now go super fast (19.2Kbps) on a Multi-Drop-Point Lease Line -
with wide temperature range and DC power

see the new DSP19.2FP modem


Telenetics new DSP9612 9600 bps, Fast Poll Modem is the ideal for use in
industrial and harsh environmental applications.

  • Fast train modem equalizer with 23 msec RTS/CTS delay

  • DSP design with automatic adaptive equalizer

  • Built-in wide range of input switching power supply for worldwide applications

  • Leased-line interface protected with heavy-duty surge protection

  • 9600/4800 bps Fast Poll and Bell 202T Mode:
    0 – 1800 bps asynchronous

  • Auto Carrier trigger off of Data

FlashPoll is designed to optimize communication links where high speed or unlimited number of drops is necessary.

Ideal for SCADA, traffic and the oil industries, the Telenetics FIashPoll DSP9600 is a cost-effective, full-featured fast poll, leased line modem with the fastest training time in the industry: 23msec RTS/CTS delay. The 23msec RTS/CTS training time allows multipoint fast polling of dedicated line Remote Terminal Units (RTU) to upgrade their speeds from the Bell 202T modems at 0-1800 bps to 9600 bps in point-to-point or multipoint applications. Eight times faster than the industry standard Bell 202T modem, the FIashPoll DSP9600 is an excellent and affordable alternative.

Developed with a high-speed Digital Signal Processor (DSP), the FIashPoll DSP9600 is the most technologically advanced product on the market today.

Ideal for systems where fast response, short training time and low throughput delay is required, FIashPoll is optimized for fast receiver equalizer training and extremely low throughput delay. The total throughput delay is reduced by 33% comparing to a standard 9600 bps modem.

FIashPoll operates at 9600 or 4800 bps over 2- or 4-wire leased or metallic lines and is temperature hardened for industrial, substation or traffic applications. When used with terminal polled devices, an unlimited number of drops is possible.


SCADA, Traffic and the oil industry are only a few of the markets that this cost effective, point-to-point or point-to-multipoint, modem serves and is best suited for leased telecom line applications. The 23 ms RTS/CTS training time allows multidrop fast polling of dedicated line Remote Terminal Units (RTU)’s to upgrade their speeds from the historic Bell202T modems at 0-1800 bps to 9600 bps.

The first model of this series is a standalone unit powered by 85 to 265VAC, 50-60Hz power with filtering and 3750V surge protection. An alternate 12/24/48VDC powered model will follow with other card/rack models later this quarter for the Telenetics Myriad 18 slot chassis, the GDI, Traffic 170 controller slot and a Motorola 16 slot chassis. All models offer line isolation and are temperature hardened to operate in -40 to 85 degrees Celsius.

The model DSP9600FP is based on a Digital Signal Processor and offers polling over voice grade telephone lines at 9600 bps with a fallback speed of 4800 bps for lines of lesser quality. Robert Way, Director of Sales and Marketing for Telenetics Network Products Group said, “This modem is eight times faster that the industry standard 1200 bps Bell202T. In fact, it is so fast we refer to it as our FLASH POLL model. This modem is an affordable alternative to the 1200 bps modems that our industry holds as the standard.”

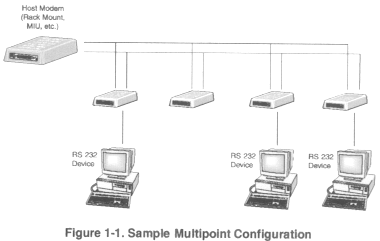

The Telenetics DSP9600 Flash Poll (DSP9600FP) modem is a 9600/4800 bps stand-alone modem designed for 4-wire full-duplex or 2-wire half-duplex operation over voice-band leased line. The DSP9600FP modem utilizes the latest digital-signal processing (DSP) technology to achieve high performance. The DSP9600FP modem also employs Telenetics' proprietary modulation and encoding scheme to achieve fast modem training time. These advantages make the DSP9600FP modem the most technologically advanced product on the market. It is especially suited for multi-point communication systems that require fast response time, short training time and low throughput delay.


Features

  • Fast train modem equalizer with 23 ms RTS-CTS delay

  • DSP design with automatic adaptive equalizer.

  • Built-in wide range input switching power supply for world-wide applications

  • Leased-line interface protected with heavy-duty surge-protection

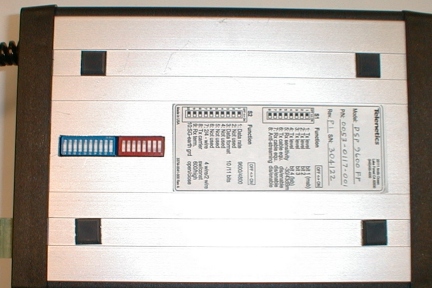

  • Easily accessible DIP switches for user configuration

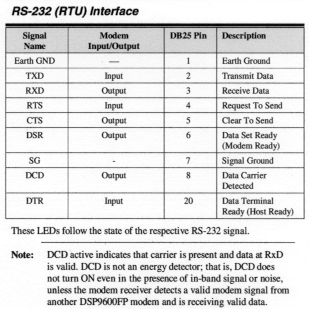

  • DB-25 connector for RS-232/V.24 interface

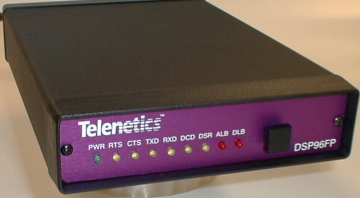

  • Diagnostic functions include LED monitoring, local analog, local digital, and remote digital loop-back

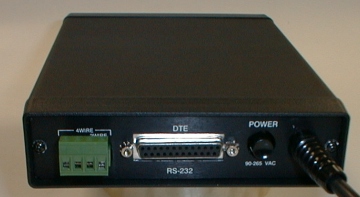

  • Rear panel DTE interface, power supply, and 4-position terminal block interfaces leased-line.
  • Auto Carrier on trigger off of Data - no RTS needed



General Specifications


Data rate:

9600 or 4800 bps asynchronous, +1 % - 2.5%

Bell 202T Mode:

0 – 1800 bps asynchronous,

Data format:

8 or 9 data bits with 1 or more stop bits

Line requirement:

TELCO Voice band 4 or 2 wire leased line

Private metallic circuits:

26 to 19 AWG

Operating modes:

2-wire half-duplex or 4-wire full-duplex

Modulation:

QAM

Equalizer:

Automatic, adaptive

Training time:

RTS to CTS delay, 23 ms

Cable equalizer:

Fixed transmitter and receiver cable equalizer, selectable (each cable equalizer is half of a 25 K ft 24 AWG cable)

Power supply:
Wide range switching power supply

85 to 265VAC,  50/60 Hz or 85 to 400VDC or
Low Voltage Range 10 to  53 volts DC power -
current draw - 12VDC at 240ma, 24VDC at 120ma, 48VDC 60ma

see part numbers

Surge protection:

Provided at power line and leased line Up to 15KV  (Standalone version)

Carrier loss recovery:

Built-in Train on Data (typically less than 30 sec)

Receiver Dynamic Range:

+3 to-30 dbm or-10 to -43 dbm (DIP switch selectable)

Operating Temperature:

-40C to +85C



Flash Poll TM
DSP 9600-DSP9612 Modem

part numbers



DSP9612FP jump to (manual)
(diagram of 125VDC connection)

85 to 265VAC,  50/60 Hz or 85 to 400VDC

DSP9612LV jump to (manual)

Low Voltage Range 10 to  53 volts DC

DSP9612RM jump to (manual)

card modem fits the RM16M chassis
(chassis can be 115VAC or 48VDC)






Mechanical Specifications


Flash Poll TM DSP 9612 Modem



jump to DSP9600FP modem

85 to 265VAC,  50/60 Hz or 85 to 400VDC

jump to DSP9612LV modem

Low Voltage Range 10 to  53 volts DC

jump to DSP9612RM modem

card modem for RM16M chassis

the 1U high 1-2-3 modem rack

 1U high racking for the stand alone DSP9612 modem
